This is the step-by-step guide to installing a HID kit for the 2007-2008 ZX-6R. I decided to do one since I was unable to find one bike specific. First of all, I'm a novice when it comes to installs. I would say that I'm a 3.5 out of 10 when it comes to skill level. However this install turn out to be very easy. It took me about 45 mins to complete and it should take you much less time with this guide. The kit I used for this install is from DDM/Apexcone that many of us has from this forum has purchased.

Here's my personal opinion of DDM.....

DDM Tuning Review:
- Quality: 8
- Value: 9
- Communication: 4
- Shipping Speed: 6
- Customer Service: 3

Before I get started, many of you had questions on how to tell the difference between the 35W and 55W ballast:

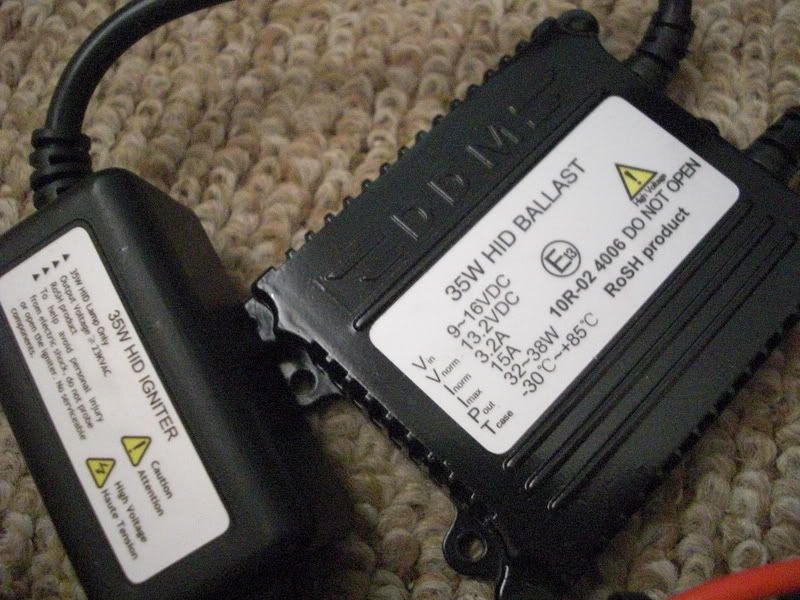

The 35W ballast is clearly labeled:



The 55W ballast is not labeled:



Okay, now back to the install...

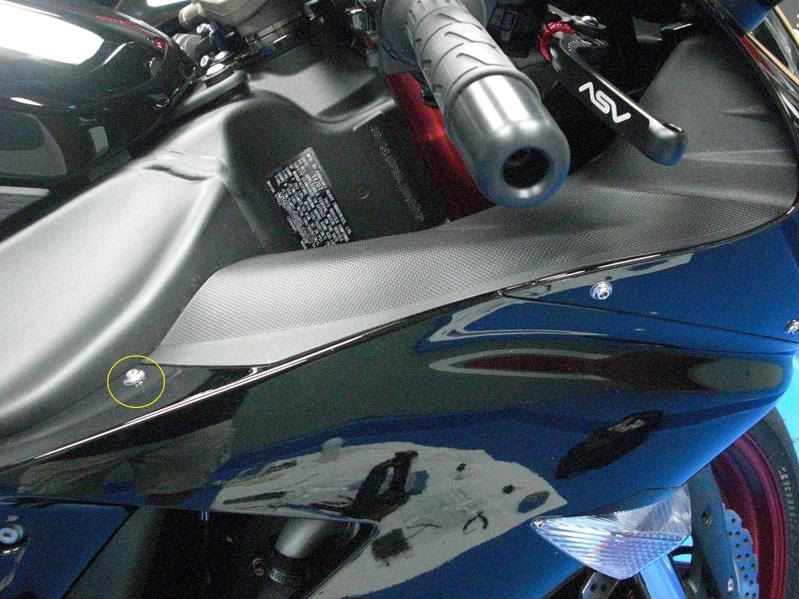

1. Remove the one bolt with the allen wrench from the bike's tool kit.

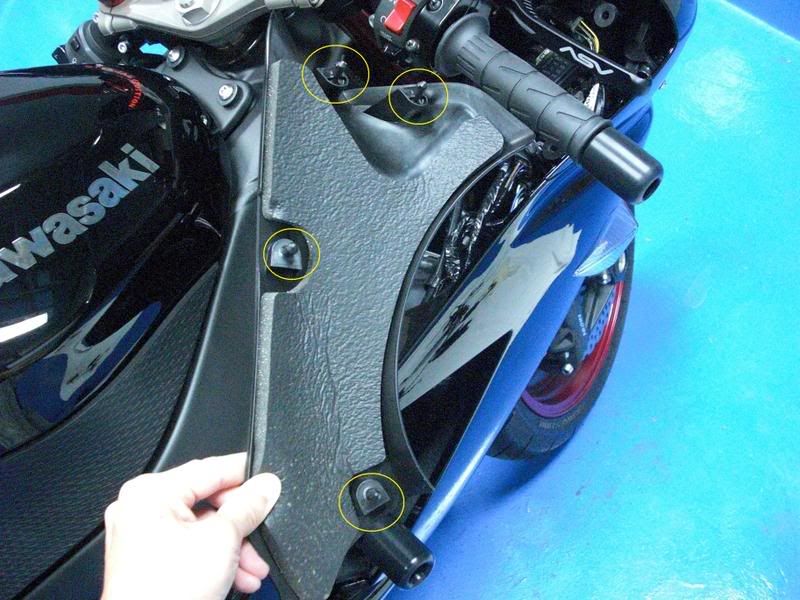

2. Removing the side panel. Note the four projections/fasteners points. Just pull up on those four points and the panel comes right off.



3. To remove the stock bulb, just turn the assembly counter-clockwise and pull out the bulb.

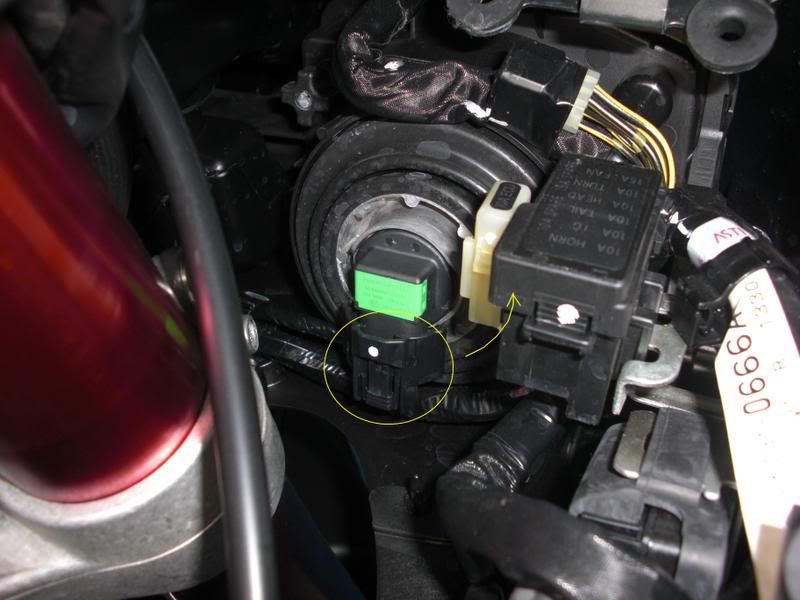

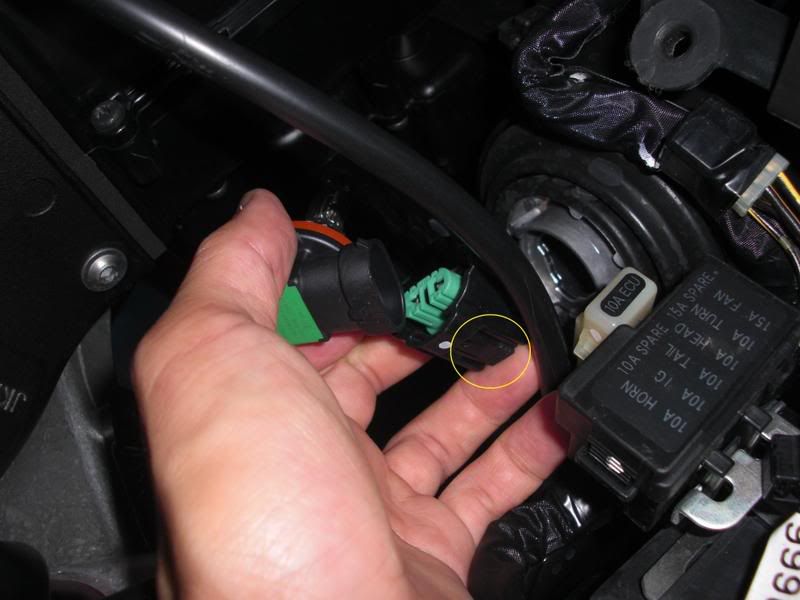

4. Now to separate the stock bulb from the power harness. Just press on the tab to release the bulb.

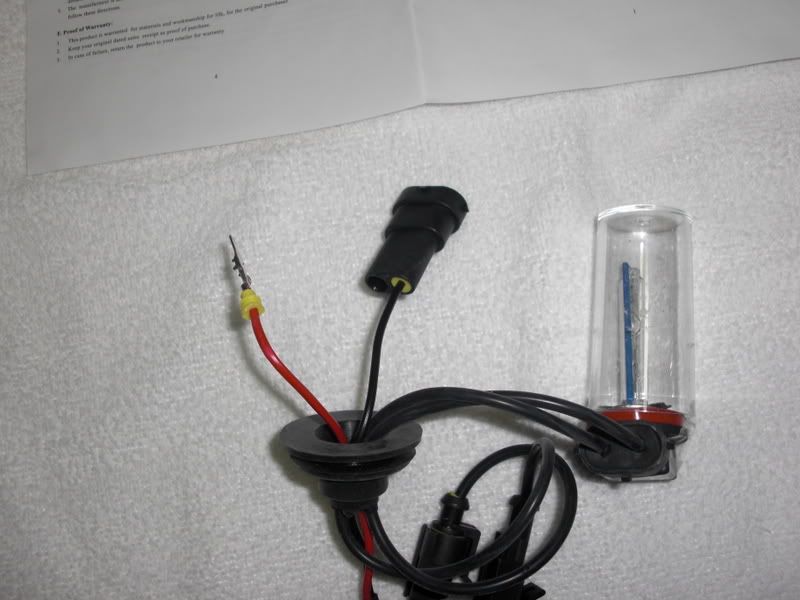

5. Assemble your ballast and HID bulb harnesses. Be sure to match up your stock bulb to the HID bulbs to determine which is high and low beam. DDM/Apexcone didn't take the time to label them :mad:. However, if you look closely you will be able to tell the difference.



6. At this point you may want to put on a pair of latex gloves to prevent the HID bulb from contacting your skin while handling. The oils from your skin may cause a hot spot and burnout your bulbs. Now you need to connect the harness from the HID assembly to the bike's power harness and install the HID bulb. ***Check out step 6A and 6B for further clarification before you complete this step.



6A. Now this is the confusion many of us have had. When connecting the harness be sure the positive is going to positive and negative to negative. The harness will fit only one way so you may need to swap the wires from the HID harness or just swap the ballast assembly. You DO NOT need to cut the wires. See step 6B on how to release the wires from the harness.



6B. If you look carefully there are tabs you can push to the side to release the wires to swap. I used a tiny jewelers flathead screwdriver to do so.

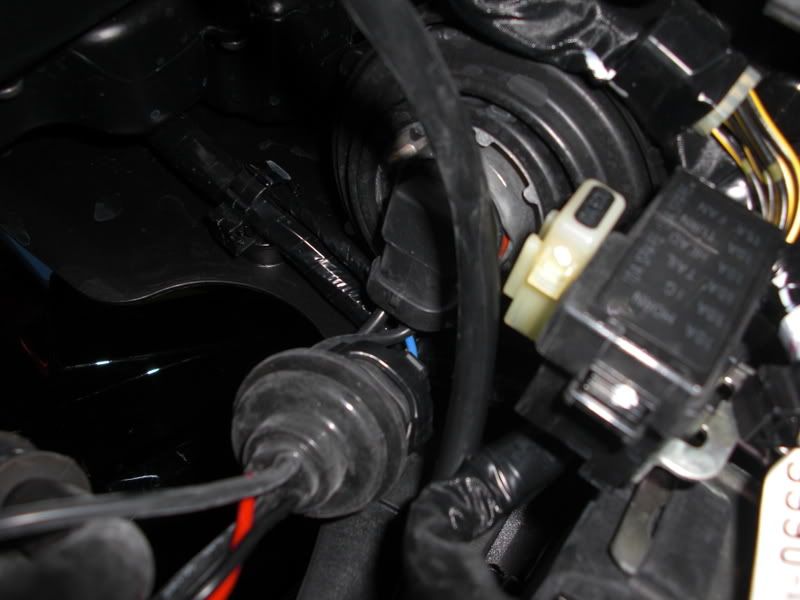

7. Here's what it should look like once you have completed step 6. Be sure to power up the headlights now to make sure it's working before going on to the next step.



8. Now to button everything up. I rolled up the excess wires and zip-tied them to clean things up. Now there isn't too many places to mount the ballast on the hand brake side (there's more space and options on the clutch side). So I attached them to the bottom of the side panel. The kit comes with double sided tape, but I suggest 3M velcro tape. The belly of the side panel is not flat so the double sided tape is ineffective. In addition, I noticed the ballast heats up very fast so that makes the double sided tape even more ineffective. The ballast came off after one ride with the double sided tape, but stayed on strong with the velcro tape.

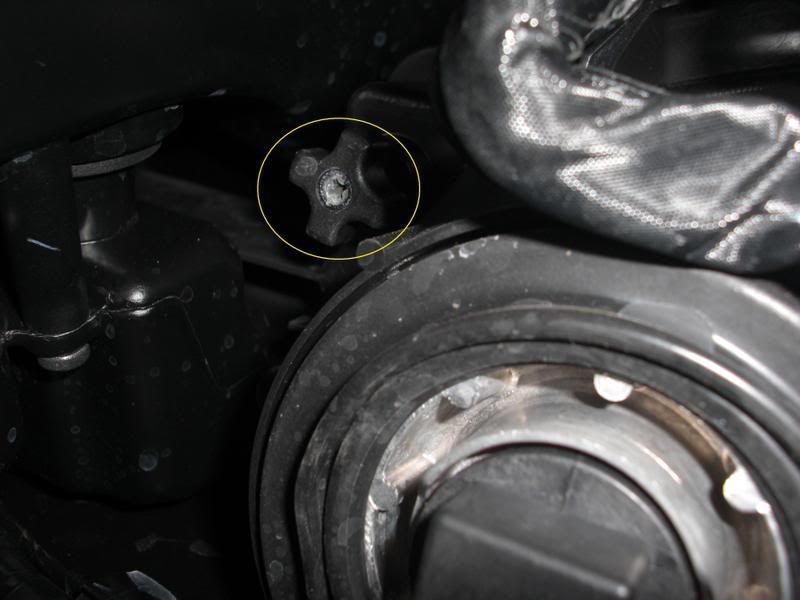

9. Once you've completed and tested the other side too, it's time to adjust the level of your lights. You may not have to do this step, but on my bike it came from the factory aimed way high. It wasn't that big of a deal with the stock bulbs but with the HID's it's blinding. On the inside of each bulb assembly you can adjust the level with a philips screwdriver (don't bother to adjust the knob with your fingers. It can be done but a big PIA!) Counter-Clockwise=Lowering Aim, Clockwise=Raising Aim. The adjustment can be done after the side panel is installed, but easier with it off.



10. Okay, now to close everything up by re-installing the side panel and you're done!



Here's are some pics after the install:

Low Beam only:



High and low beam:



55W, 6K:



55W, 6K:
